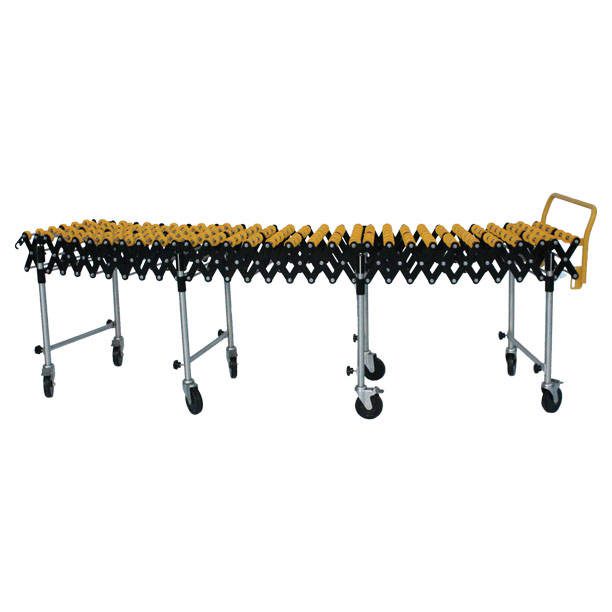

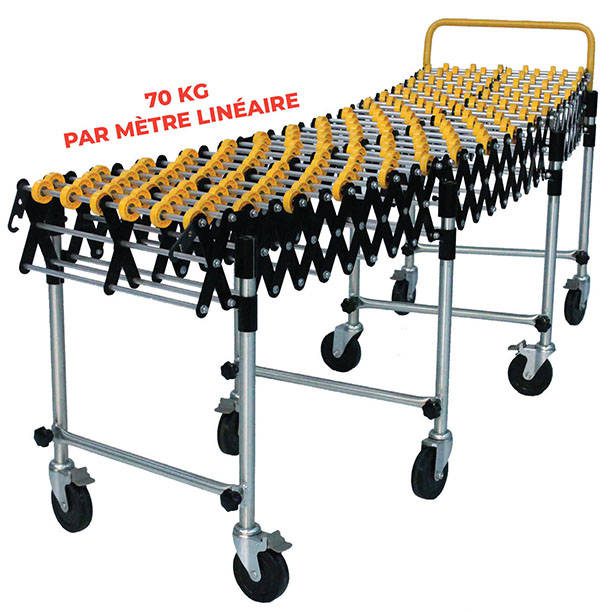

Transportor cu roți din plastic FWC-A 70 kg per LM

This plastic skate wheel conveyor prevents operators from musculoskeletal disorders (MSD). Choose the desired length by adding 50 or 60 mm wide modules.

* Contact us for stock/shipping details before ordering. *

În prezent, acest produs nu este în stoc și este indisponibil.

CATALOG
Contactați-ne
Comparaţie
Adaugă la lista de dorințe
Cod produs: FWC-A Categorie:
Desemnare
FWC-A2-50 - NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 500 MM WIDE PLASTIC ROLLER CONVEYORFWC-A2-50
NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 500 MM WIDE PLASTIC ROLLER CONVEYOR

Greutate: 25 kg
Catalogue P.54
FWC-A2-50X3 - Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 500 mmFWC-A2-50X3
Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 500 mm

Weight : 76 kg
Bar code : 3700664824673
Catalogue P.54
FWC-A2-50X4 - Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 500 mmFWC-A2-50X4
Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 500 mm

Weight : 97 kg
Bar code : 3700664824666
Catalogue P.54
FWC-A2-50X5 - Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 500 mmFWC-A2-50X5
Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 500 mm

Weight : 118 kg
Bar code : 3700664824659
Catalogue P.54
FWC-A2-50X6 - Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 500 mmFWC-A2-50X6
Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 500 mm

Weight : 139 kg
Bar code : 3700664824642
Catalogue P.54
FWC-A2-60 - NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 600 MM WIDE PLASTIC ROLLER CONVEYORFWC-A2-60
NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 600 MM WIDE PLASTIC ROLLER CONVEYOR

Weight : 28 kg
Catalogue P.54
FWC-A2-60X3 - Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 600 mmFWC-A2-60X3
Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 600 mm

Greutate: 84 kg
Bar code : 3700664824635
Catalogue P.54
FWC-A2-60X4 - Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 600 mmFWC-A2-60X4
Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 600 mm

Greutate: 106 kg
Bar code : 3700664824628
Catalogue P.54
FWC-A2-60X5 - Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 600 mmFWC-A2-60X5
Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 600 mm

Weight : 128 kg
Bar code : 3700664824611
Catalogue P.54
FWC-A2-60X6 - Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 600 mmFWC-A2-60X6
Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 600 mm

Weight : 150 kg
Bar code : 3700664824604
Catalogue P.54

  • Plastic skate wheel conveyor with a load capacity of 70 kg per linear meter
  • Steel frame
  • Flexible conveyor suited for many applications
  • Includes end stop roller and connecting hooks
  • Adjustable height: from 800 to 1000 mm
  • Plastic rollers (48.5 mm ) with enclosed ball bearings
  • Width: 500 or 600 mm
  • Additional conveyors can be connected
  • Available in 3 to 6 modules for each width
  • Descărcați specificațiile produsului pentru informații tehnice suplimentare
Model

FWC-A2-50, FWC-A2-50X3, FWC-A2-50X4, FWC-A2-50X5, FWC-A2-50X6, FWC-A2-60, FWC-A2-60X3, FWC-A2-60X4, FWC-A2-60X5, FWC-A2-60X6
