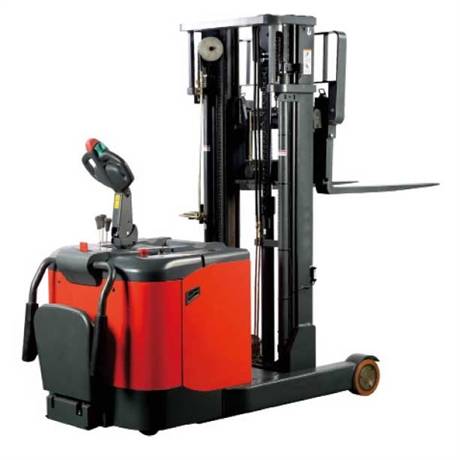

SRS13 Daugiafunkcis krautuvas su stiebu, 1300 kg

• Electric stackers designed with a compact structure and an excellent reach mast system ideal for tight spaces.
• Superior performance and efficiency are guaranteed by a powerful AC traction motor and a power assisted steering system.
• High-end components and best value.
• The flip-down platform is the best choice if the stacker has to be used in warehouses and over long distances.
• This electric stacker features: Straddle legs, reach mast, AC traction motor, power steering system to reduce operator effort, high capacity battery for greater autonomy and service life.
• Fork tilting ensure easy and safe stacking operations. It also enables operators to slide the forks into the pallets effortlessly.
• Sideshift function allows operators to easily reposition loads specially on tight spaces without having to move the stacker.
• Easy EUR-pallet entry (1220 x 800 mm) thanks to the straddle 880 mm inner width.
• Side battery extraction.
• The SRS13 provides the same stability and flexibility as a common counterbalance heavy stacker. Its reach mast offers flexibility when working at height tight spaces.
• The platform has also a lateral protection for stand-up rider use.
• Download the product specification to compare our 3 models available with TRIPLEX FFL mast
• Elektrinė varomoji jėga
• Operatoriaus tipas: pėsčiasis
• Rated capacity: 1.3 metric tons
• Atstumas tarp krovinio centro: 600 mm
• Load distance, center of drive axle to fork (x): 415 mm
• Wheelbase: 1350 mm
• Poliuretano ratai (PU)
• Steering wheels dimensions: 250 x 82 mm
• Front rollers dimensions: 210 x 85 mm
• Stabilizing rollers dimensions: 124 x 60 mm
• Number of front / rear wheels (x= steering wheel): 1 x + 2/2
• Straddle legs center distance: 680
• Tread, rear: 1085 mm
• Tiller height in drive position min. / max.: 1030 / 1415 mm
• Fork height lowered: 50 mm
• Overall length: 2080 mm
• Length without forks: 1160 mm
• Overall width: 1180 mm
• Fork dimensions: 35 / 100 / 920 mm
• Width across forks: 200 / 760 mm
• Ground clearance: 40 mm
• Aisle width for pallets 1000 x 1200 crossways: 2600 mm
• Aisle width for pallets 800 x 1200 lengthways:2650 mm
• Turning radius: 1570 mm
• Travel speed laden / unladen: 5,5/6 – 8/8 km/h
• Lift speed, laden / unladen: 0,11 / 0,165 m/s
• Lowering speed, laden / unladen: 0,11 / 0,1 m/s
• Gradeability performance of 5% laden and 8% unladen
• Elektromagnetinis darbinis stabdys
• Baterijos svoris: Žr. produkto specifikacijas, kurias galima atsisiųsti
• Pavaros valdymo tipas: Kintamoji srovė – greičio valdymas
• Garso lygis vairuotojo ausyje pagal EN 12053:<67 dB
• Informacijos apie visus kėlimo aukščius ir likutinę keliamąją galią ieškokite paveikslėliuose esančioje lentelėje arba atsisiųskite gaminio specifikacijas, kad gautumėte daugiau techninės informacijos.

Parinktys

• Flip-down platform
