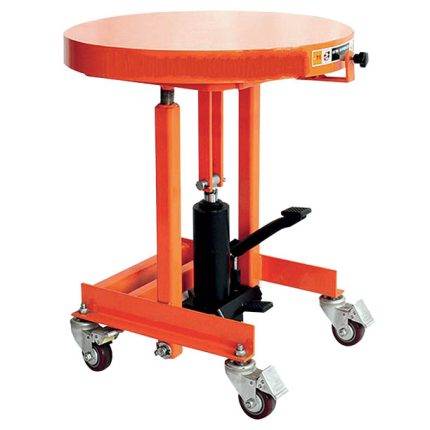

MD20R Rotating work table 200 kg €521.00
Back to products

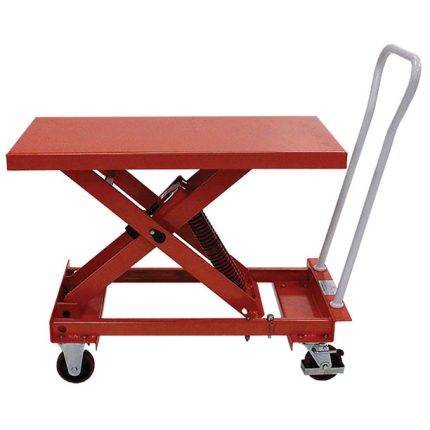

SBC Self-leveling scissor lift table 210 and 400 kg €457.00 - €529.00

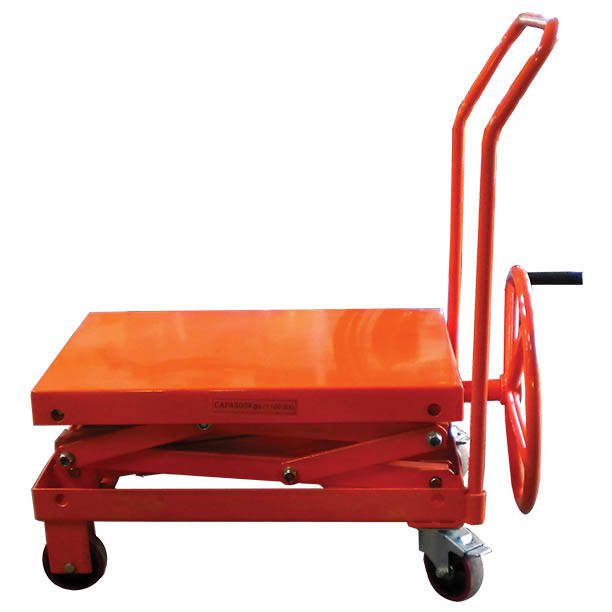

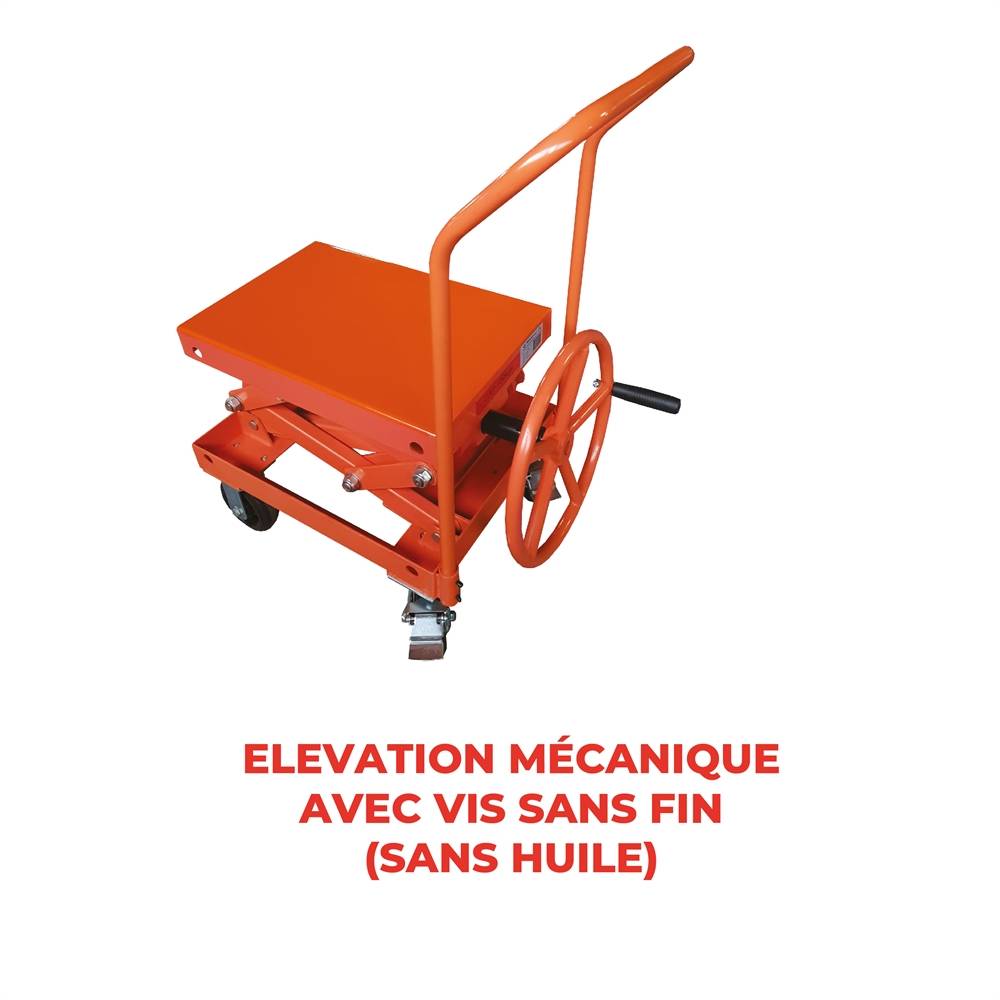

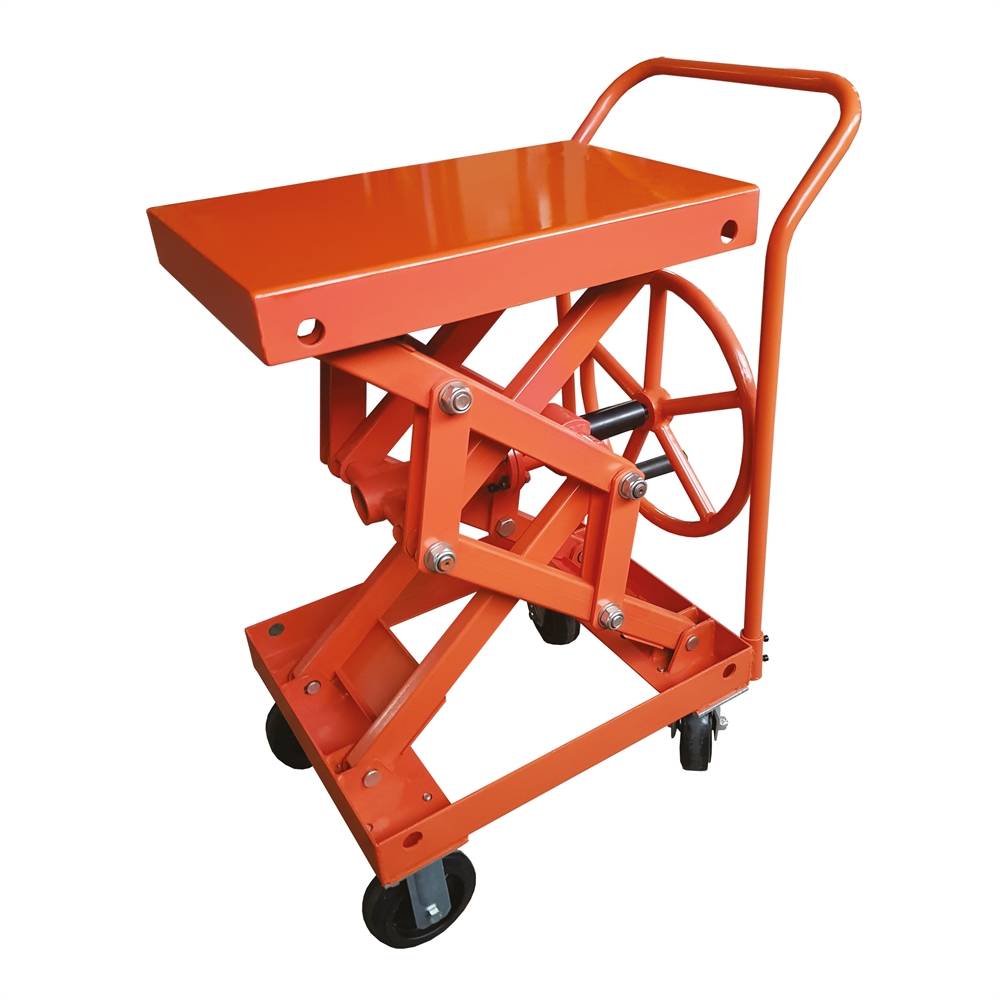

SBV Crank wheel scissor lift table 100 and 250 kg

This manual lift table is secure. During lifting, a worm drive allows no downward drift for enhanced safety. Lift height is 800 or 1150 mm depending on the version chosen.

€841.00 - €1,010.00

Ryd
CATALOGUE
Contact Us
Sammenlign
Add to wishlist
Varenummer (SKU): SBV Kategori:
Designation
SBV200 - Crank wheel scissor lift table 100 kgSBV200
Crank wheel scissor lift table 100 kg

Weight : 80 kg
Bar code : 3700664800622
Catalogue P.296
SBV500 - Crank wheel scissor lift table 250 kgSBV500
Crank wheel scissor lift table 250 kg

Weight : 120 kg
Bar code : 3700664800639
Catalogue P.296

  • Crank wheel scissor lift table with a capacity of 100 and 250 kg depending on the model
  • Platform dimensions: 600 x 400 mm (SBV200) or 800 x 500 mm (SBV500)
  • Lift height: 800 or 1150 mm depending on the version chosen
  • Worm drive provides precise micrometer driven height adjustment of the top platform
  • Crank wheel to raise and lower the platform
  • Worm drive allows no downward drift for enhanced safety
  • 2 x fixed and 2 x swivel braked casters
  • No oil
  • No maintenance
  • Extremely long service life
  • Very high precision
  • Download the product specifications for further technical information
Model

SBV200, SBV500
