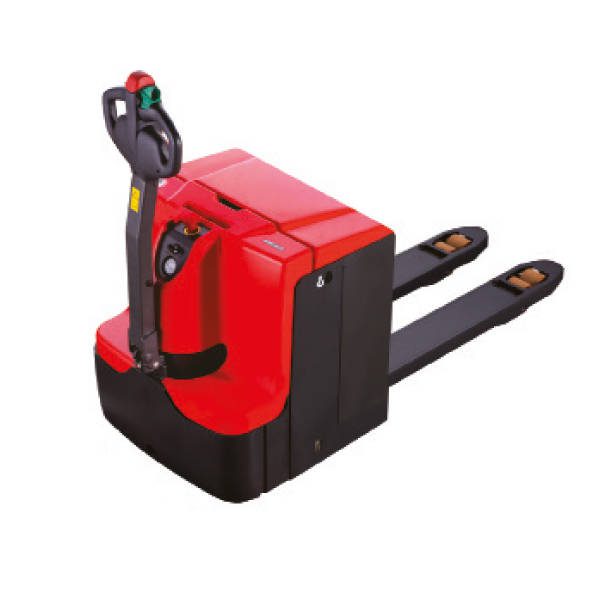

PT20L Pedestrian powered pallet truck 2000 kg

• The PTL pedestrian powered pallet truck series are renowned for its ergonomic, compact and maneuverable characteristics.
• They are competitive and robust.
• The German AC traction motor is powerful and maintenance-free.
• Core components come from top brands (Kordel, Intorq, Wicke for instance).
• This equipment helps prevent MSDs (musculoskeletal disorders).
• These electric pallet truck have a travel speed of 6 km/h
• It has a gradeability performance of 8 % laden and 15% unladen
• Equipped with electromagnetic brakes
• Load capacities change depending on the model: 2 metric tons for PT20L
• Wheels are made of polyurethane (PU) and measure 230 mm diameter
• Standard lift height is 125 mm
• Aisle width for 800 x 1200 pallets is 2005 mm for PT20L
• Forks dimensions all the same for all 3 models: 60 mm (thickness) / 173 mm (width) / 1150 mm (length)
• Width across forks: 540 mm / 680 mm
• Ground clearance: 25 mm
• Turning radius: 1490 mm for PT20L
• A long steering handle guarantees the operator is at a safe distance from the pallet truck.
• The steering handle design ensures less operational efforts compared to short handle pallet trucks.
• The multiplexing system CAN-BUS increases the unit’s performance and reduces maintenance downtime.
• The pallet truck and its components have been specially designed to perform maintenance and servicing with ease.
• With only 2 screws, the cowl can be easily removed for easy access to all components. Wheels and rollers can be easily replaced without a lifting device.
• Each PT L series has a battery for a specific type of use: PT20L has a 210Ah DIN 2PzS battery (215 kg)
• PT L pallet trucks series chassis is extremely robust and its mainframe is 8 mm thick.
• The stainless steel battery reduces maintenance costs and possible damages significantly.
• Traction motor and brakes are well protected.
• Zapi motor controller (IP54) is dust and splash resistant. Moreover, the controller on PT20L can be fully customized to meet specific user requirements.
• Sound level at driver’s ear acc. to EN 12053: 69 dB for PT20L
• Download the product specifications for further technical information

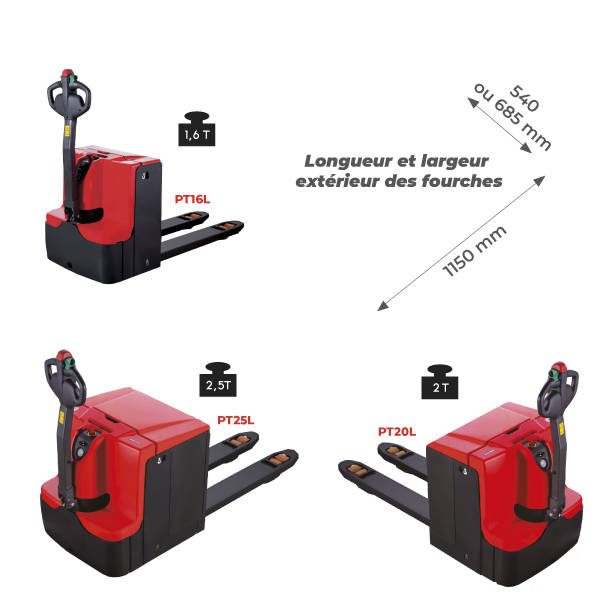

• Compare the 3 models thanks to the information on each product page: PT16L, PT20L, PT25L.

Options

• Load backrest
• Side battery extraction
• Different fork dimensions available on demand (540 mm or 685 mm)
• Automatic battery filling system
