HWLC Budget electric lift table 1000 and 2000 kg
€1,654.00 - €1,891.00

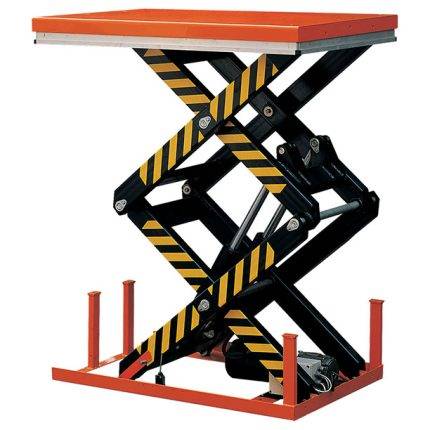

HD Electric double scissors lift table 1000 to 4000 kg
€2,927.00 - €4,279.00

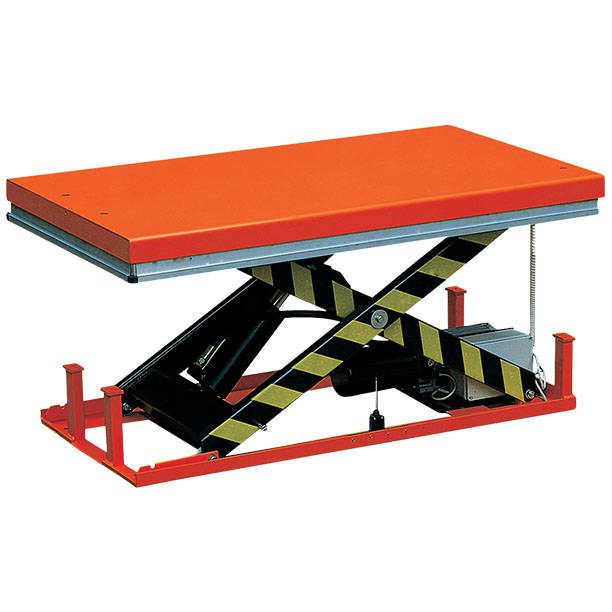

HW Electric lift table 1000 to 4000 kg
Find below the demo video of this PREMIUM single scissor electric lift table. There are 20 models available depending on the desired load capacity and platform size.
€1,874.00 - €3,379.00
| Designation | |
|---|---|
 | HW1001/220V Electric lift table 1000 kg platform dimensions 1300 x 820 mm 220V Weight : 160 kg Bar code : 3700664818191 Catalogue P.303 |
| HW1001/380V Electric lift table 1000 kg platform dimensions 1300 x 820 mm 380V Weight : 160 kg Bar code : 3700664818184 Catalogue P.303 |
 | HW1002/220V Electric lift table 1000 kg platform dimensions 1600 x 1000 mm Weight : 186 kg Bar code : 3700664809328 Catalogue P.303 |
| HW1002/380V Electric lift table 1000 kg platform dimensions 1600 x 1000 mm Weight : 186 kg Bar code : 3700664802572 Catalogue P.303 |
 | HW1003/220V Electric lift table 1000 kg platform dimensions 1700 x 850 mm 220V Weight : 160 kg Bar code : 3700664817965 Catalogue P.303 |
| HW1003/380V Electric lift table 1000 kg platform dimensions 1700 x 850 mm 380V Weight : 200 kg Bar code : 3700664817958 Catalogue P.303 |
 | HW1004/380V Electric lift table 1000 kg platform dimensions 1700 x 1000 mm Weight : 210 kg Bar code : 3700664817934 Catalogue P.303 |
 | HW1005/380V Electric lift table 1000 kg platform dimensions 2000 x 850 mm Weight : 210 kg Bar code : 3700664802589 Catalogue P.303 |
| HW1005/220V Electric lift table 1000 kg platform dimensions 2000 x 850 mm 220V Weight : 210 kg Bar code : 3700664813417 Catalogue P.303 |
 | HW1006/380V Electric lift table 1000 kg platform dimensions 2000 x 1000 mm Weight : 212 kg Bar code : 3700664817880 Catalogue P.303 |
| HW1006/220V Electric lift table 1000 kg platform dimensions 2000 x 1000 mm 220V Weight : 212 kg Bar code : 3700664813424 Catalogue P.303 |
 | HW2001/380V Electric lift table 2000 kg platform dimensions 1300 x 850 mm Weight : 223 kg Bar code : 3700664817590 Catalogue P.303 |
 | HW2002/380V Electric lift table 2000 kg platform dimensions 1600 x 1000 mm Weight : 235 kg Bar code : 3700664817583 Catalogue P.303 |
 | HW2003/380V Electric lift table 2000 kg platform dimensions 1700 x 850 mm Weight : 268 kg Bar code : 3700664817569 Catalogue P.303 |
 | HW2004/380V Electric lift table 2000 kg platform dimensions 1700 x 1000 mm Weight : 289 kg Bar code : 3700664802596 Catalogue P.303 |
 | HW2005/380V Electric lift table 2000 kg platform dimensions 2000 x 850 mm Weight : 300 kg Bar code : 3700664817545 Catalogue P.303 |
 | HW2006/380V Electric lift table 2000 kg platform dimensions 2000 x 1000 mm Weight : 315 kg Bar code : 3700664817538 Catalogue P.303 |
 | HW4001/380V Electric lift table 4000 kg platform dimensions 1700 x 1200 mm Weight : 375 kg Bar code : 3700664817453 Catalogue P.303 |
| HW2006/220V Electric lift table 2000 kg platform dimensions 2000 x 1000 mm 220V Weight : 315 kg Bar code : 3700664812724 Catalogue P.303 |
 | HW4002/380V Electric lift table 4000 kg platform dimensions 2000 x 1200 mm Weight : 405 kg Bar code : 3700664817446 Catalogue P.303 |
 | HW4003/380V Electric lift table 4000 kg platform dimensions2000 x 1000 mm Weight : 470 kg Bar code : 3700664817354 Catalogue P.303 |
 | HW4004/380V Electric lift table 4000 kg platform dimensions 2000 x 1200 mm Weight : 490 kg Bar code : 3700664817347 Catalogue P.303 |
 | HW4005/380V Electric lift table 4000 kg platform dimensions 2200 x 1000 mm Weight : 480 kg Bar code : 3700664817330 Catalogue P.303 |
 | HW4006/380V Electric lift table 4000 kg platform dimensions 2200 x 1200 mm Weight : 505 kg Bar code : 3700664817316 Catalogue P.303 |

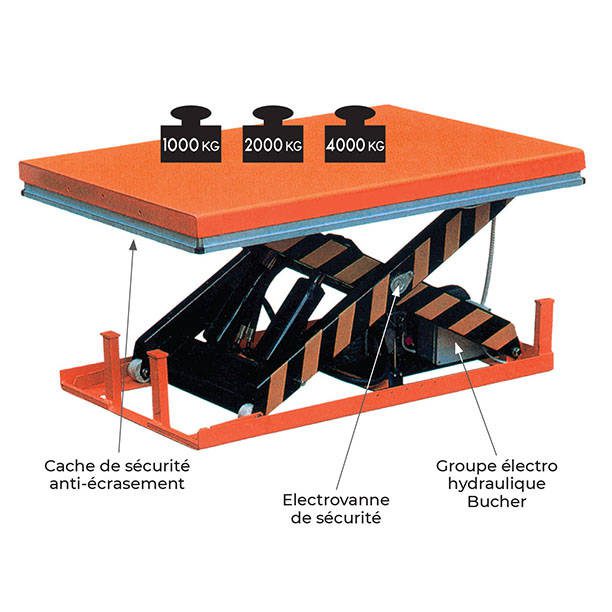

- Premium electric lift table with a capacity of 1, 2 or 4 metric tons
- 6 models per capacity with different dimensions and elevation speed
- Bucher hydraulic electro-pump
- Fitted with high-end components
- Excellent overall robustness
- Safety clearance to prevent trapping
- Shear protection
- Self-lubricated rollers and bushings
- Lowering speed control valve
- Hose burst valve
- Safety trip bars
- Upper travel limit switch
- Hand controller with 4 m cable
- Single-phase 220-volt AC motor comes standard on HW1001 AND HW1003 models
- Download the product specifications for further technical information
- Watch this product demo video on our YouTube channel
Options
- Position control system (please specify the adjustment range desired when ordering)
- 220V single-phase
| Model |
HW1001/220V, HW1001/380V, HW1002/220V, HW1002/380V, HW1003/220V, HW1003/380V, HW1004/380V, HW1005/220V, HW1005/380V, HW1006/220V, HW1006/380V, HW2001/380V, HW2002/380V, HW2003/380V, HW2004/380V, HW2005/380V, HW2006/220V, HW2006/380V, HW4001/380V, HW4002/380V, HW4003/380V, HW4004/380V, HW4005/380V, HW4006/380V |
|---|
